Acoustic Plaster
Acoustic Plaster

Grain

Lightly textured, natural mineral acoustic surface

Natural, delicately textured surface with powerful sound absorption

Acoustic Plaster Grain offers a lightly textured, seamless mineral surface designed to let sound pass through and attenuate within the mineral wool layer beneath. The result is a naturally granular finish that effectively absorbs unwanted reverberations, enhancing the acoustic comfort of interior spaces.

Available in an extensive palette of colors, Acoustic Plaster Grain can be specified as a 48mm or 28mm system and applied seamlessly to flat or curved surfaces of up to 2000ft², delivering a subtle, high-performance finish.

Order Sample

Features & Benefits
  • Seamless, hand applied finish
  • Excellent acoustic performance
  • NRC value of 1.00 (48mm system) and 0.85 (28mm system)
  • Class A fire rated
  • Zero VOC
  • Breathable
  • Minimum 72% recycled content
  • Natural mineral material
  • Mold and mildew resistant
  • Seamless application of areas up to 2000ft²
  • Color matching and bespoke service available

Certifications
  • Acoustic performance:
    • 28mm system:
      • EN ISO 354:2003: αw = 0.75, Class C
      • SAA = 0.86, NRC = 0.85 (from EN ISO 354 testing)
    • 48mm system:
      • EN ISO 354:2003: αw = 1.00, Class A
      • SAA = 1.06, NRC = 1.00 (from EN ISO 354 testing)
  • Fire rating (in all colours):
    • EN 13501-1:2007: A2 – s1, d0
    • ASTM E84-20: Class A
  • VOC content and Emissions:
    • Indoor Air Comfort: Pass
    • BREEAM International v2.0 (2016):  Exemplary Level
  • Embodied carbon EN15804 +A2 (A1-A3):
    • 28mm system: 4.17 kg CO2e/m2
    • 48mm system: 6.46 kg CO2e/m2
  • Environmental Product Declaration
  • Health Product Declaration

Areas of Use
  • Interior
  • Flat ceilings
  • Curved ceilings
  • Vaulted ceilings
  • High level walls

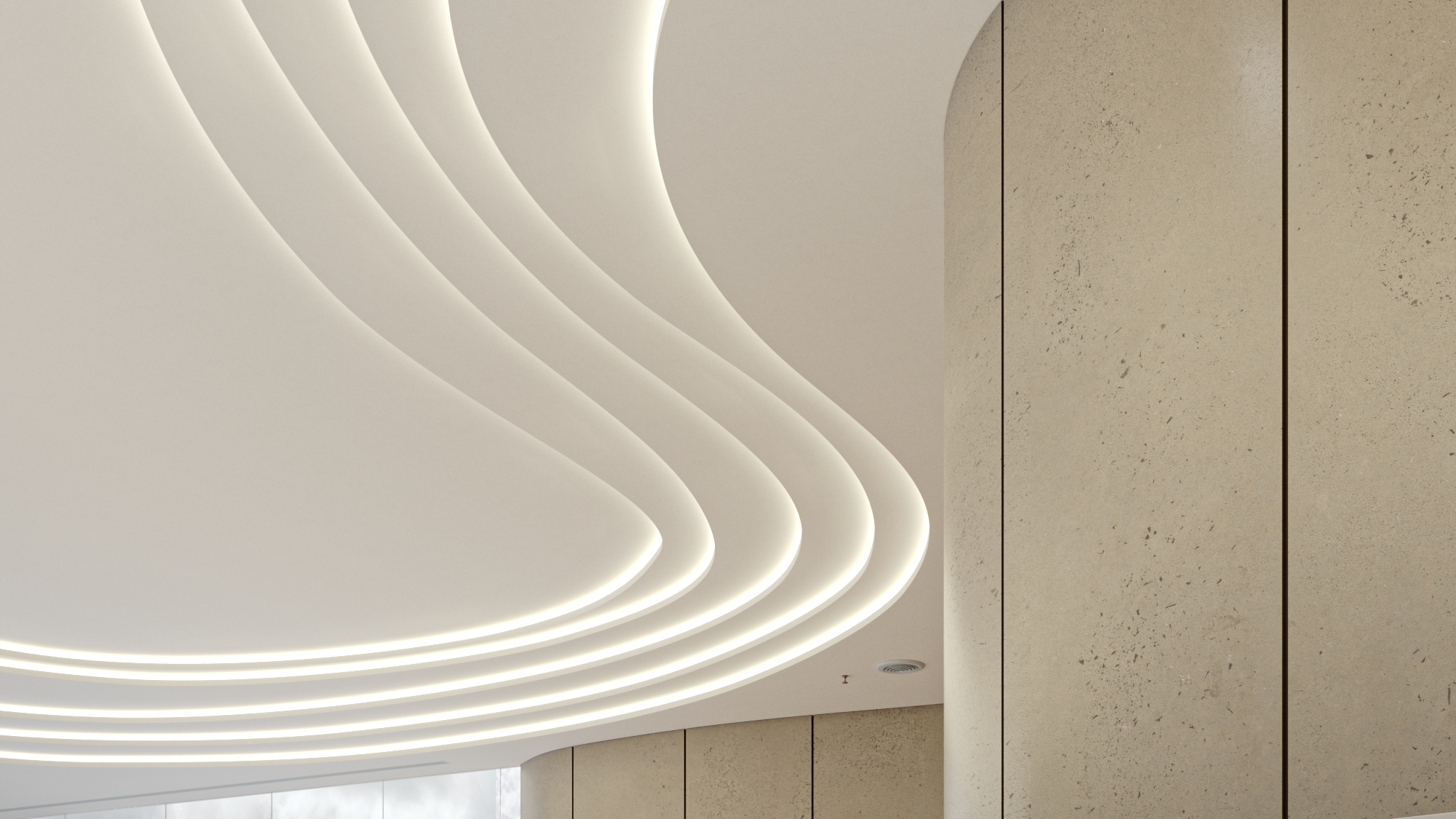

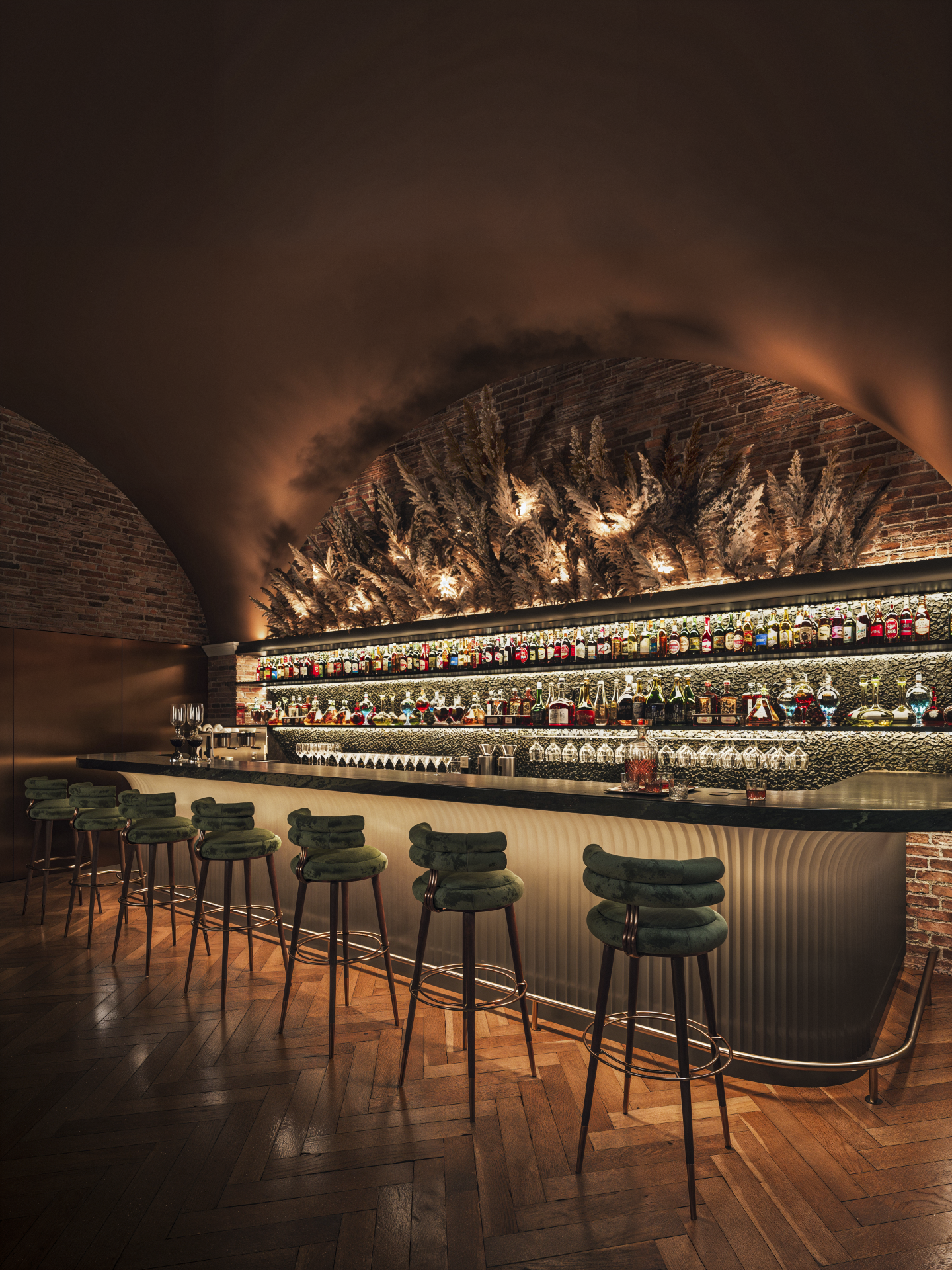

ACOUSTIC PLASTER GRAIN – DESIGN INSPIRATION

Available in 2 PERFORMANCE LEVELS

48mm System

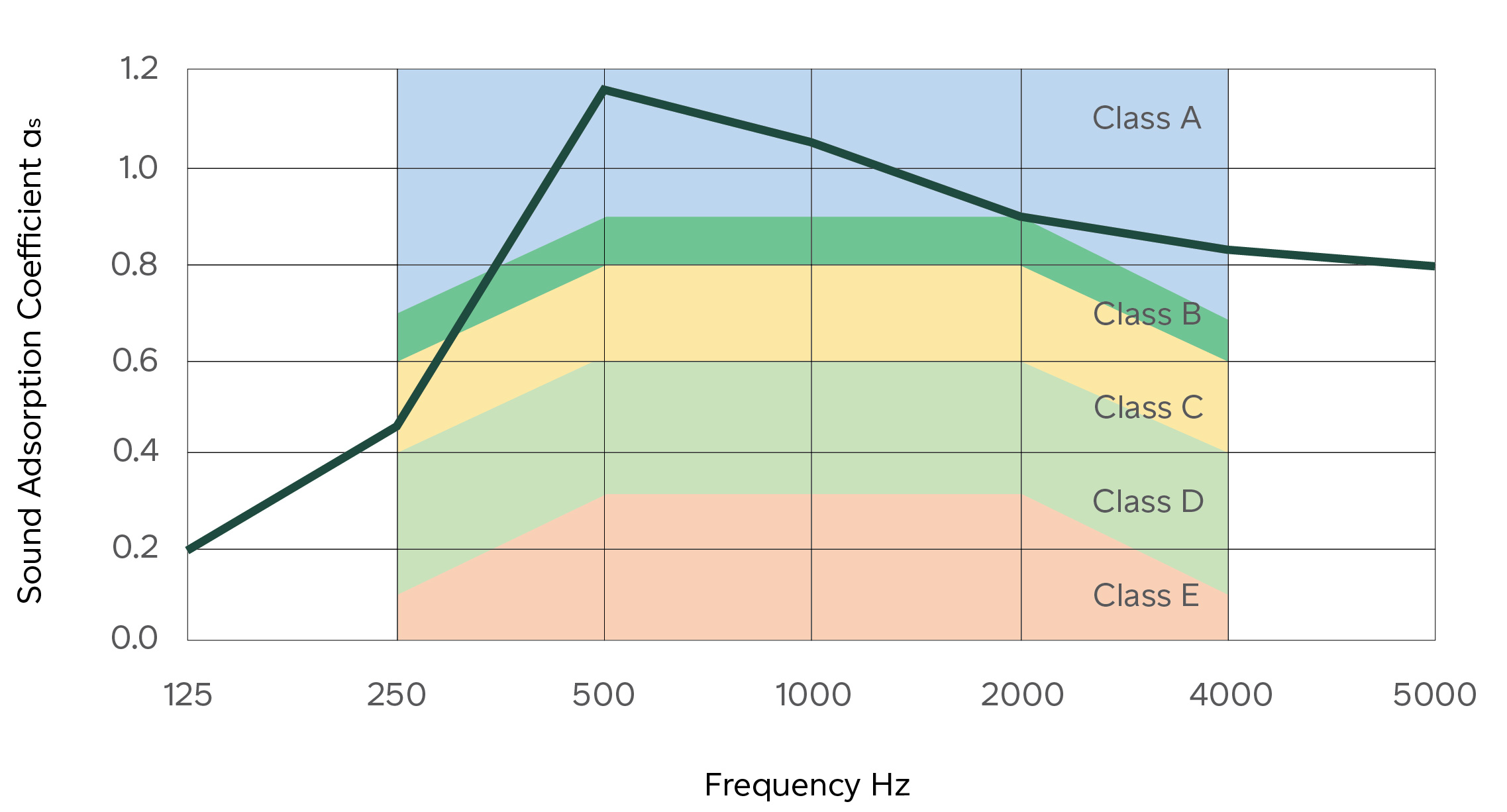

A Noise Reduction Coefficient of 1.00 was achieved when the 48mm Acoustic Plaster System – Grain was independently tested to European Standard EN ISO 354.

28mm System

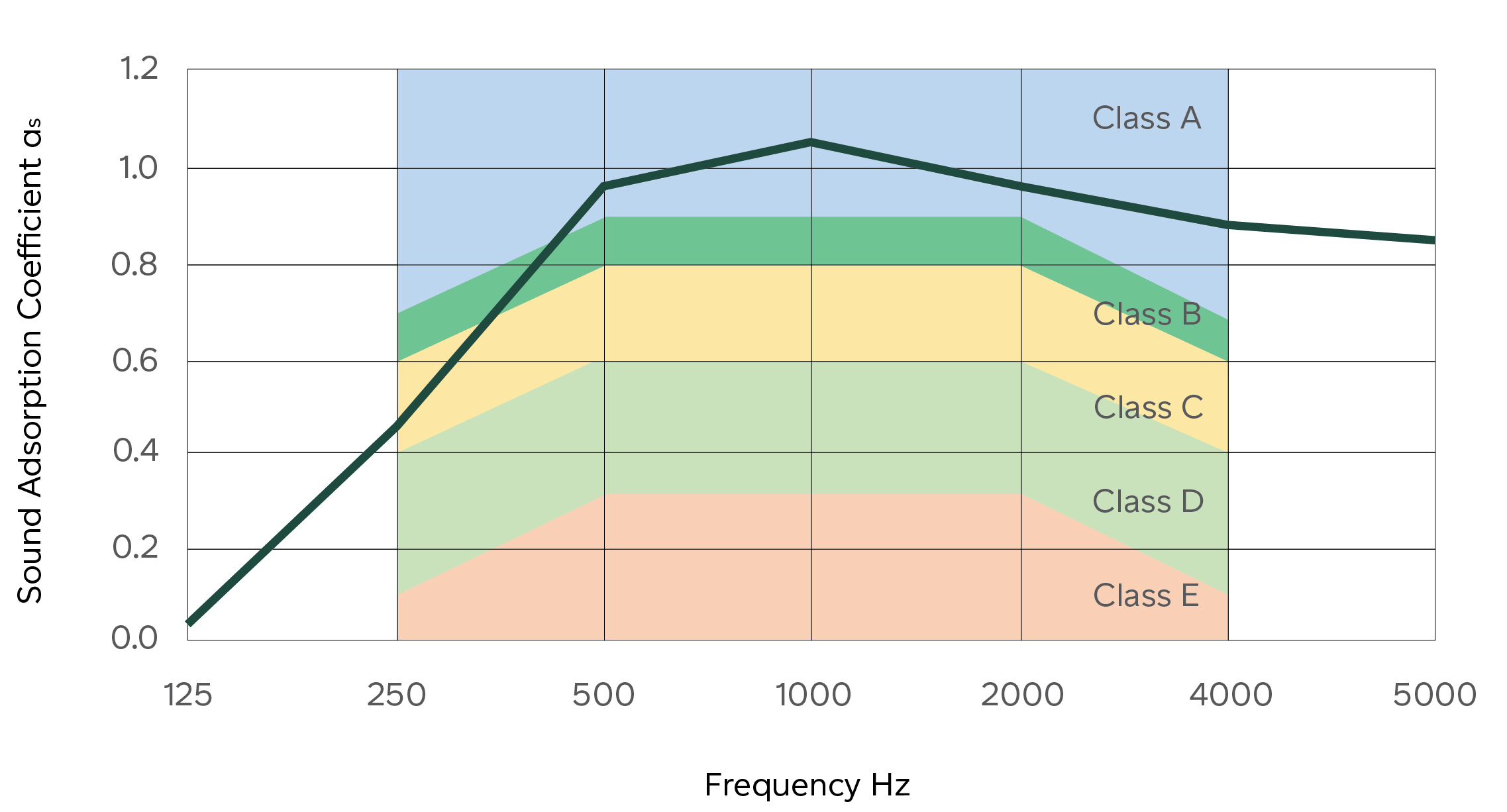

A Noise Reduction Coefficient of 0.85 was achieved when the 28mm Acoustic Plaster System – Grain was independently tested to European Standard EN ISO 354.

ACOUSTIC PLASTER Grain Color Range and Samples

001
White
002
Pale Grey

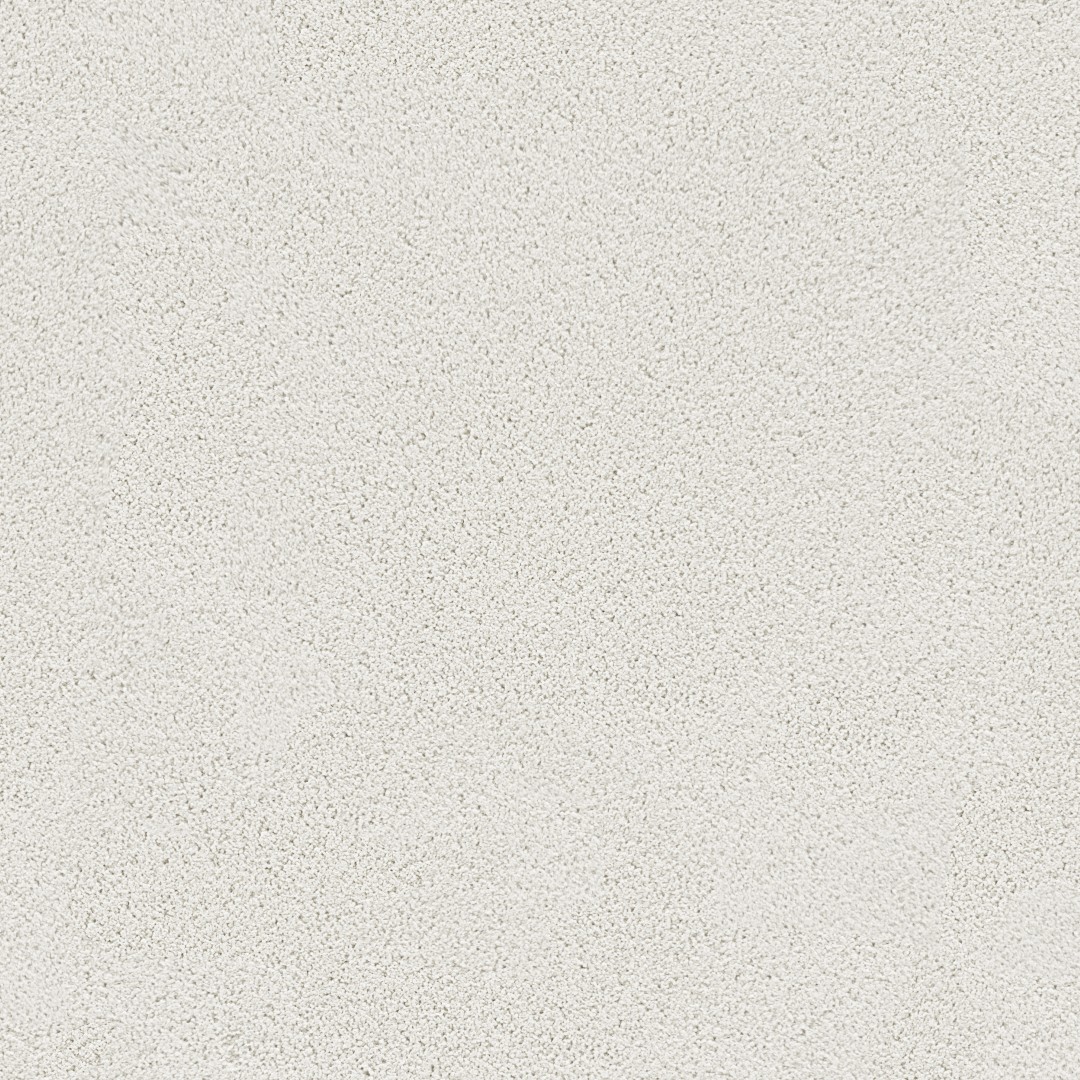

003
Pale Taupe

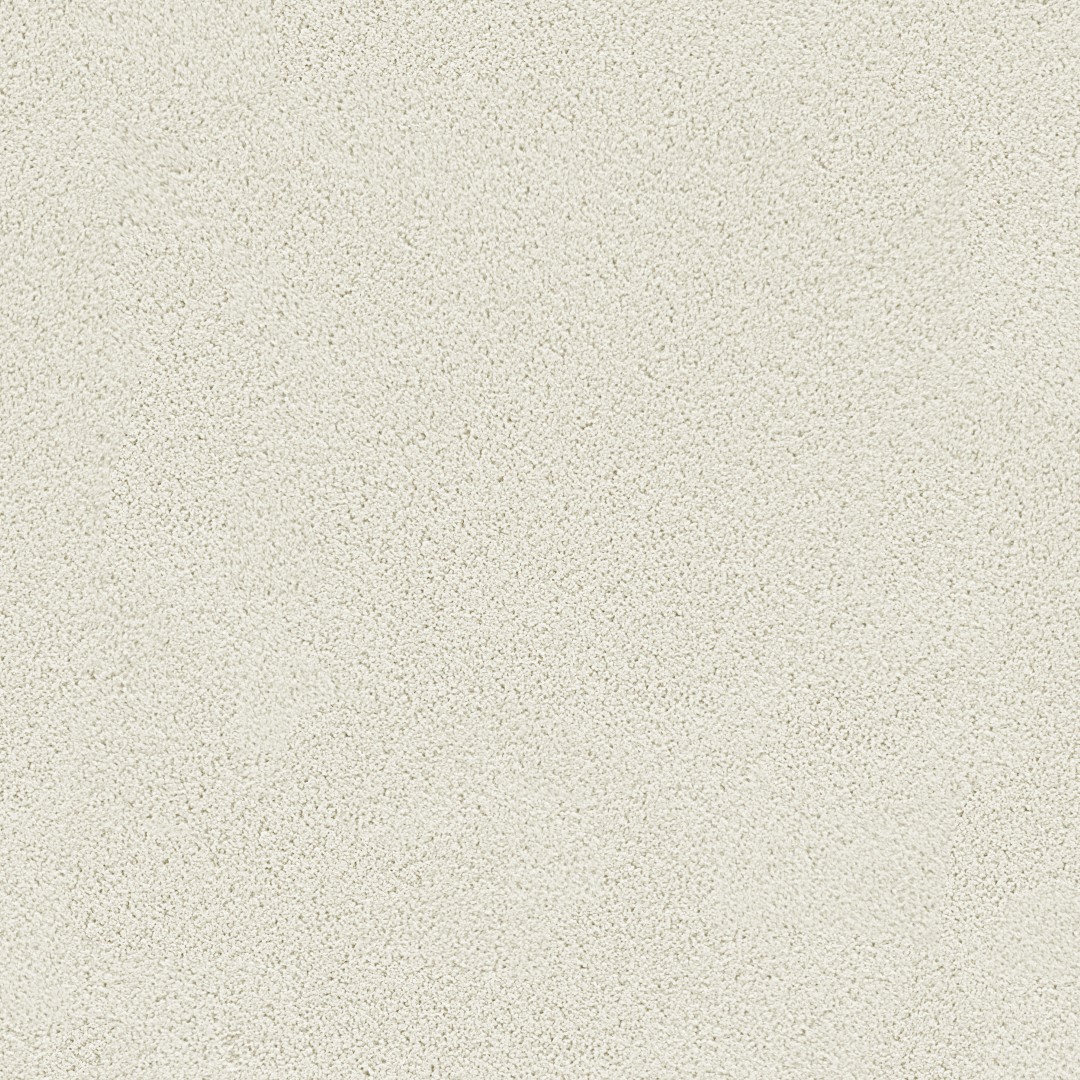

004
Pale Cream
Colors and patterns illustrated are for guidance only.
Due to image rendering limitations, the exact pattern, colors and shades may vary from those shown.
For an accurate representation please order a sample.

Colour match service

Try our Color Matching Service

Need more color?

Acoustic Plaster can be produced in a wide range of tones. Please contact our sales team for more information and to order samples.
