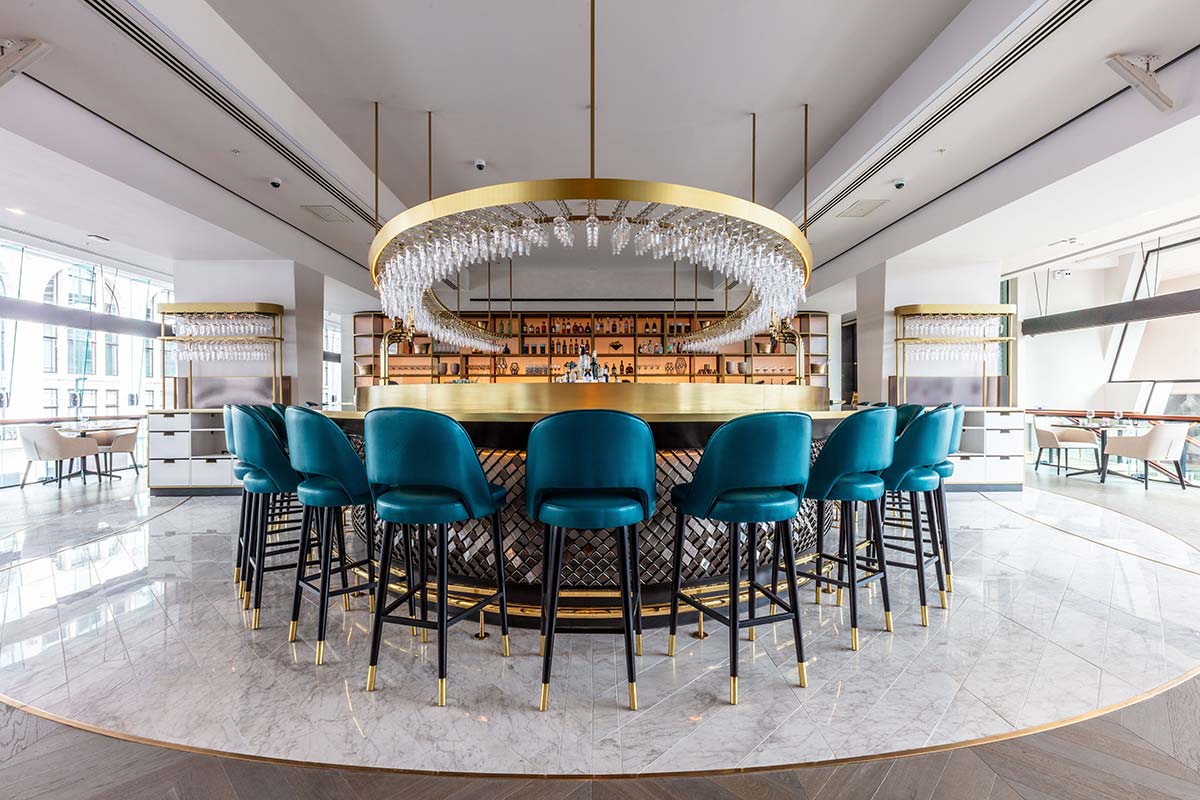

Armourcoat acoustic plaster system on bar ceiling at Vivi Centrepoint

Acoustic Plaster

Designed to optimise the acoustics of interior spaces to improve health and wellbeing.

Designed for all the senses. A seamless elegant marble based plaster system that allows sound energy to pass through the surface making any space feel calmer and more relaxing.

Outstanding Acoustic Performance
Natural Material
Sustainable Accreditations
Fire Rated
Supply, Install & Warranty
Bespoke Service

Available in 2 thicknesses

Illustration of Class A 48mm thickness of Armourcoat Acoustic plaster system

Class A 48mm system

Independent tests were carried out in the UK on the Armourcoat Acoustic Plaster System to determine the Sound Absorption Coefficient (αs), conducted in accordance with European Standard EN ISO 354.

Illustration of Class B 28mm thickness of Armourcoat Acoustic plaster system

Class B 28mm system

Independent tests were carried out in the UK on the Armourcoat Acoustic Plaster System to determine the Sound Absorption Coefficient (αs), conducted in accordance with European Standard EN ISO 354.

Creating a calm and inviting environment.

Acoustic Plaster System is a beautiful smooth mineral surface with powerful sound absorption. Made in the UK from a minimum of 72% recycled material, it can be installed seamlessly over large expanses of flat, curved and vaulted ceilings as well as high level walls.

Over 35 years of expertise in the formulation of marble based plaster finishes have created a clean, elegant finish that still allows sound energy to pass through the surface. This enables sound to be absorbed and attenuated in the layer of natural mineral wool beneath, improving the quality of well being in interior spaces.





Feature & Benefits

  • Seamless, hand applied finish
  • Excellent acoustic performance
  • Fire rated
  • Zero VOC
  • Breathable
  • Recycled content: 72-75%
  • Natural mineral material
  • 28mm or 48mm thickness
  • Mould and mildew resistant
  • Colour matching available

Certifications

  • Acoustic performance:
    • 28mm system:
      • EN ISO 354:2003: αw = 0.80 Class B
      • ASTM C423-17: SAA = 0.82, NRC = 0.85
    • 48mm system:
      • EN ISO 354:2003: αw = 0.95 Class A
      • ASTM C423-17: SAA = 0.92, NRC = 0.9
  • Fire rating (in all colours):
    • EN 13501-1:2007: A2 – s1, d0
    • ASTM E84-20: Class A
  • VOC content and Emissions:
    • Indoor Air Comfort: Pass
    • BREEAM International v2.0 (2016):  Exemplary Level
  • Embodied carbon: EN15804 +A2: 0.48 – 0.56 kg CO2e.
  • Environmental Product Declaration
  • Health Product Declaration

Areas for Use

  • Interior
  • Flat ceilings
  • Curved ceilings
  • Vaulted ceilings
  • High level walls

Modern Craftsmanship

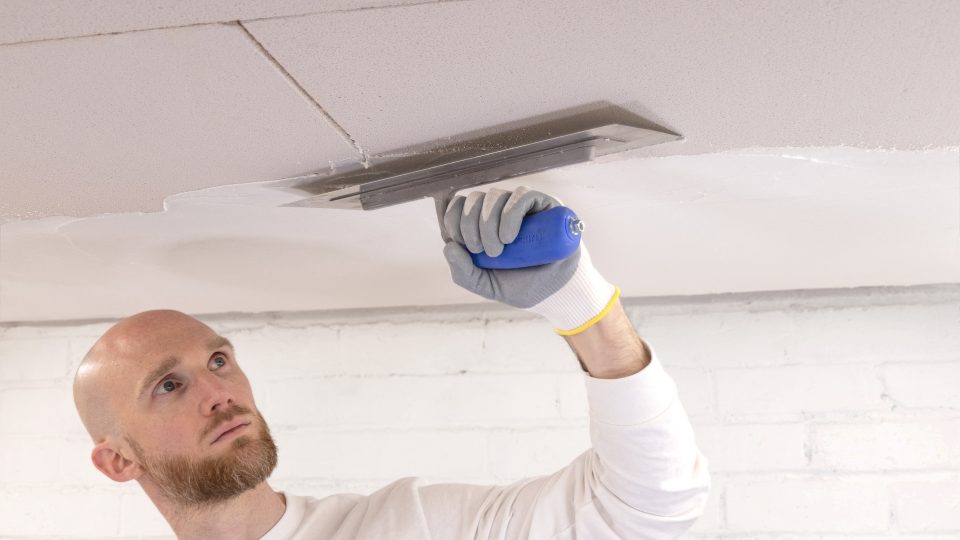

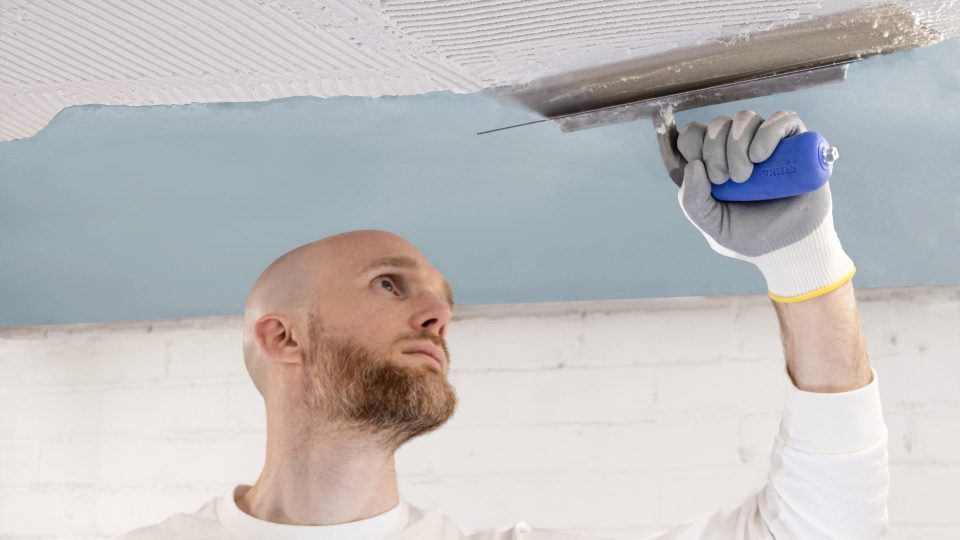

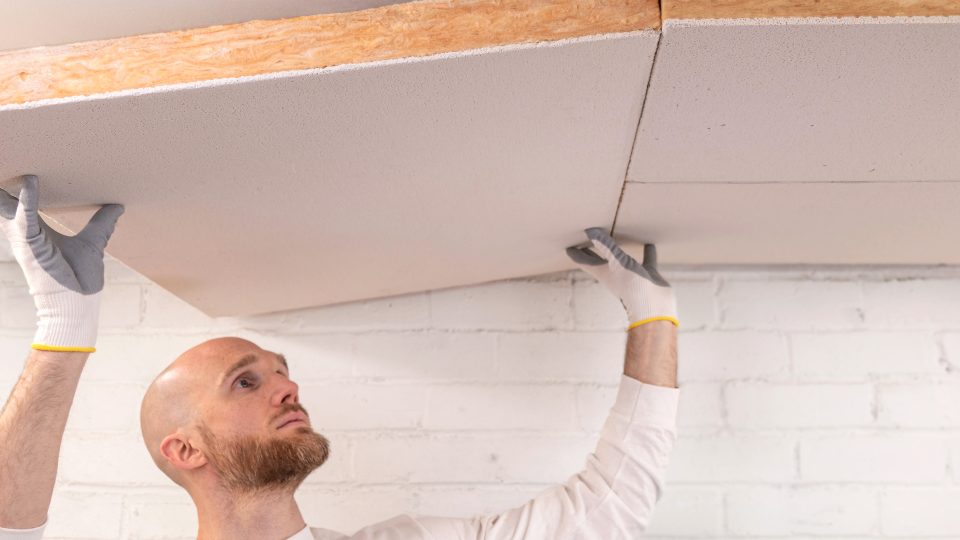

The Armourcoat Acoustic Plaster System is comprised of mineral wool panels with a factory applied acoustic plaster basecoat. These panels are installed on site by skilled applicators before the surface is hand finished with a seamless layer of natural mineral acoustic plaster. Areas of up to 200m² can be achieved without any joint lines.

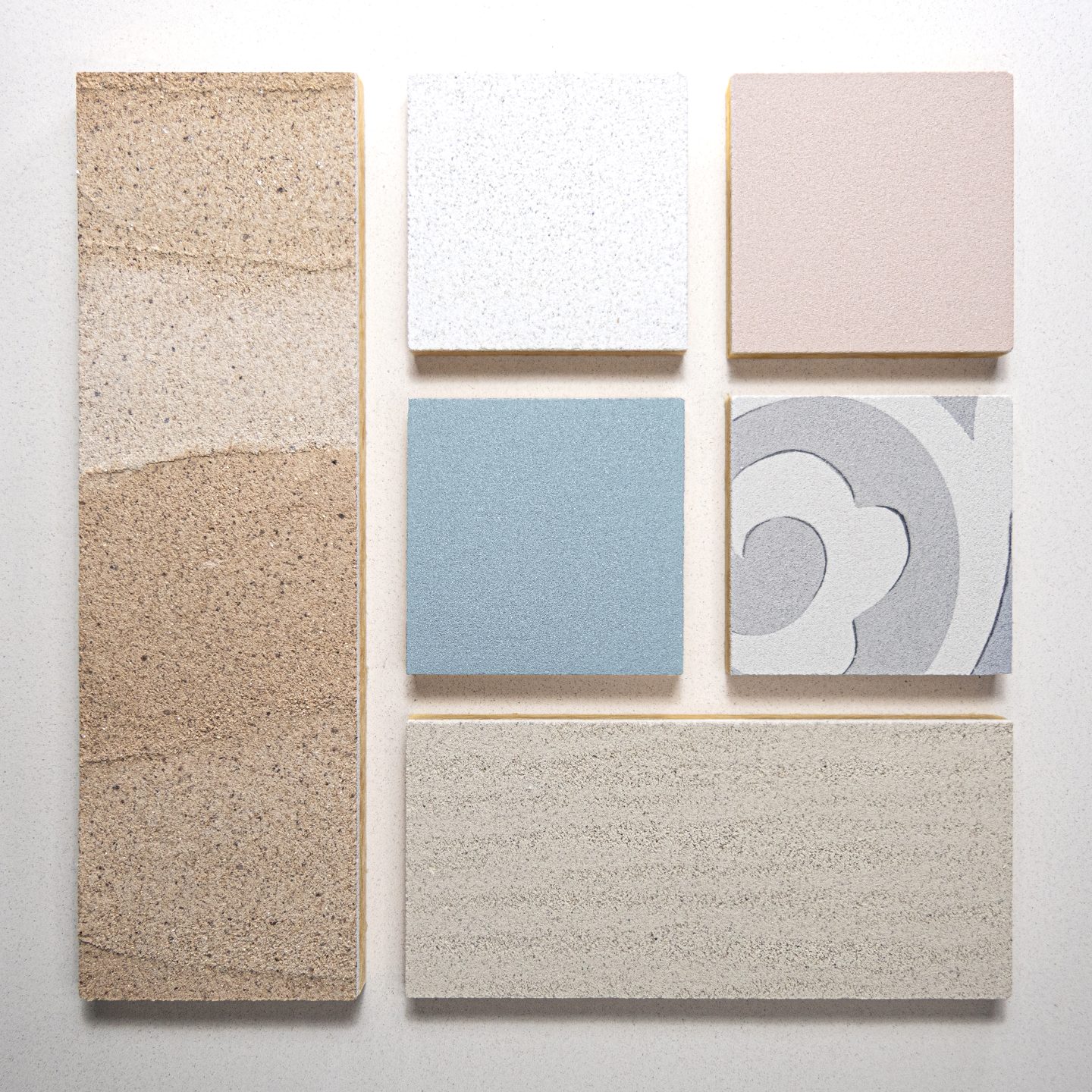

Four colours are available as standard with custom colours and colour matching also available. Custom finishes are also possible, such as concrete and sky effects.

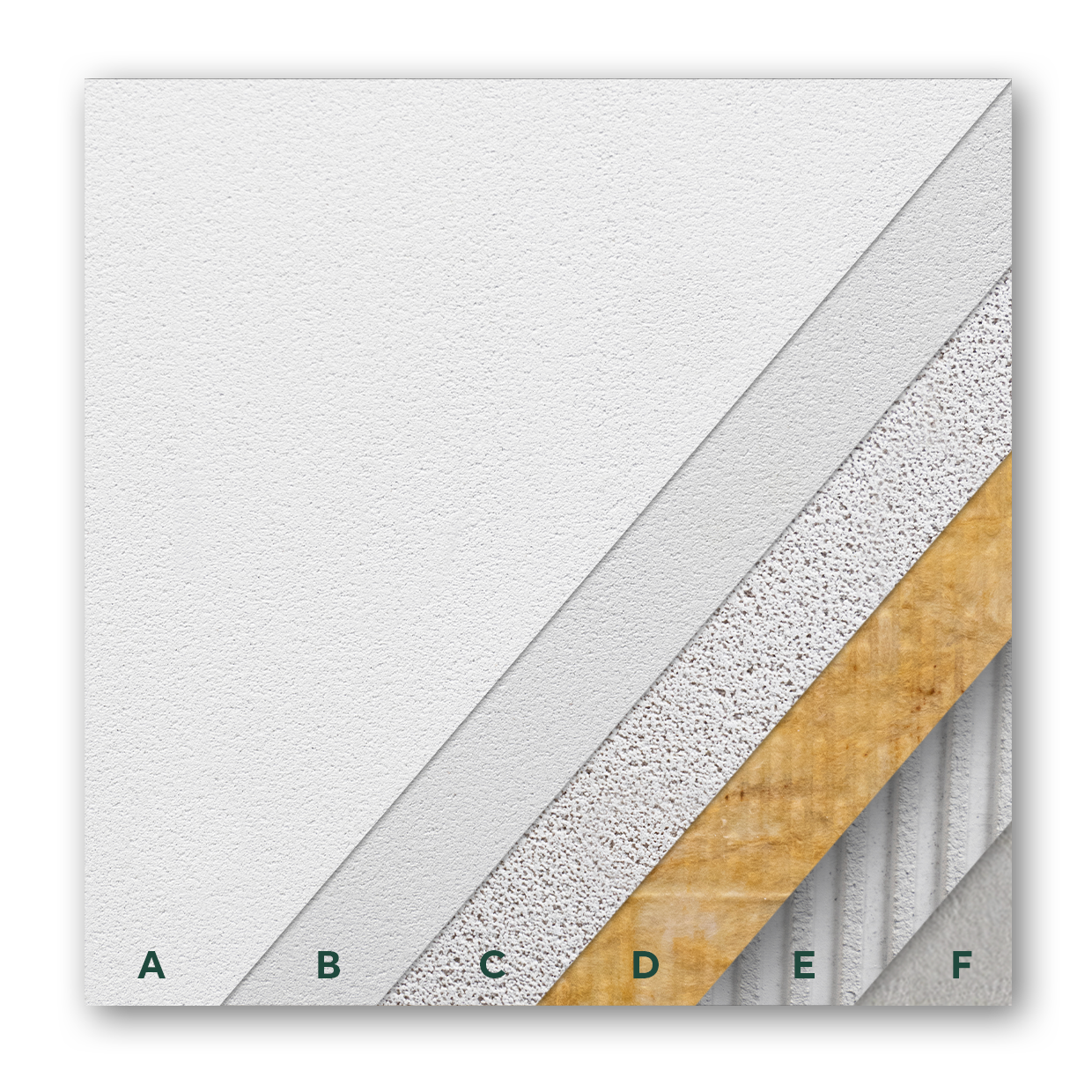

A: Seamless Acoustic Plaster Topcoat(s)
B: Acoustic Plaster Basecoat
C: Mineral Wool Panel
D: Bondplast Gypsum Adhesive
E: Substrate

CGI representation of Armourcoat Acoustic Plaster System

Order Sample

001
White
002
Pale Grey

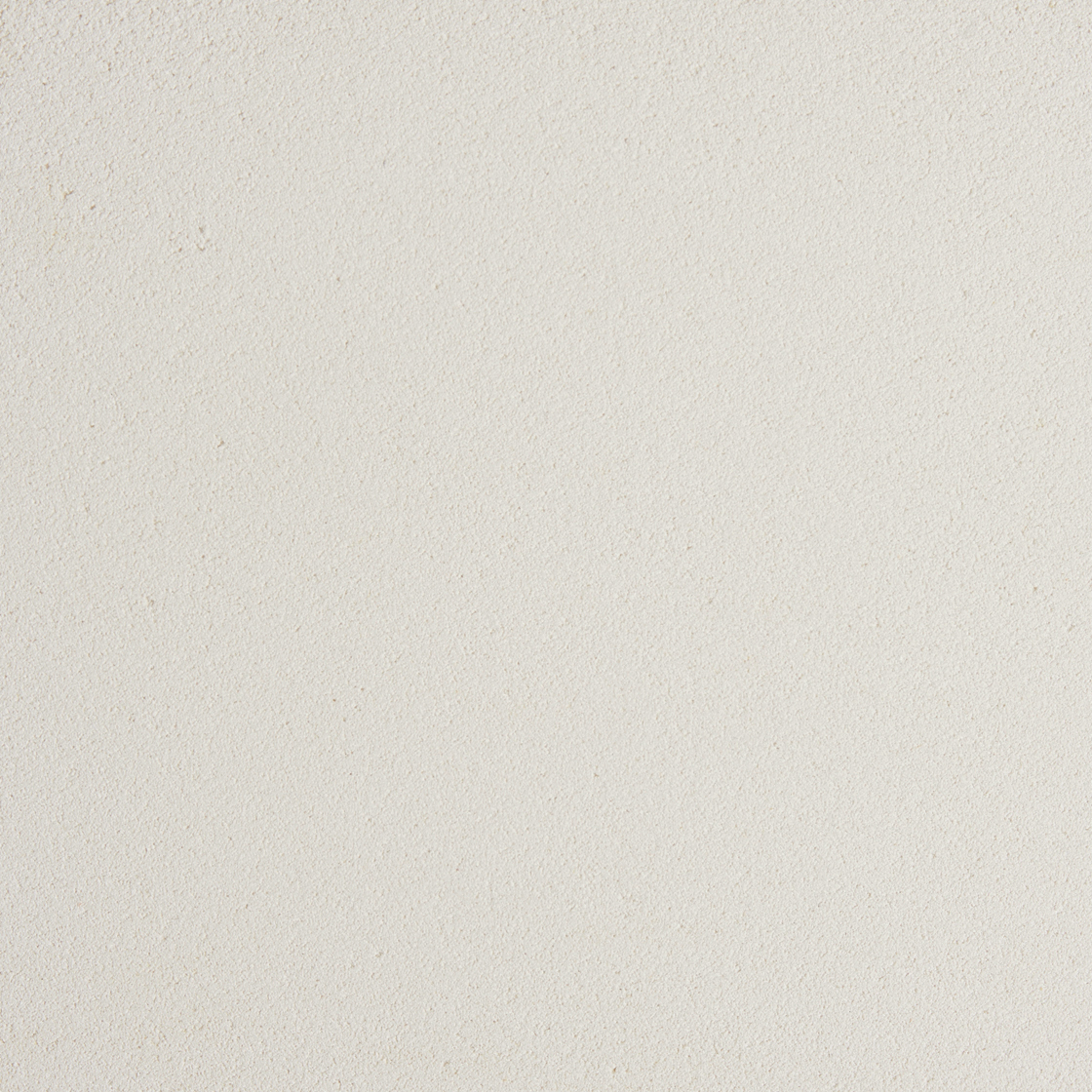

003
Pale Taupe

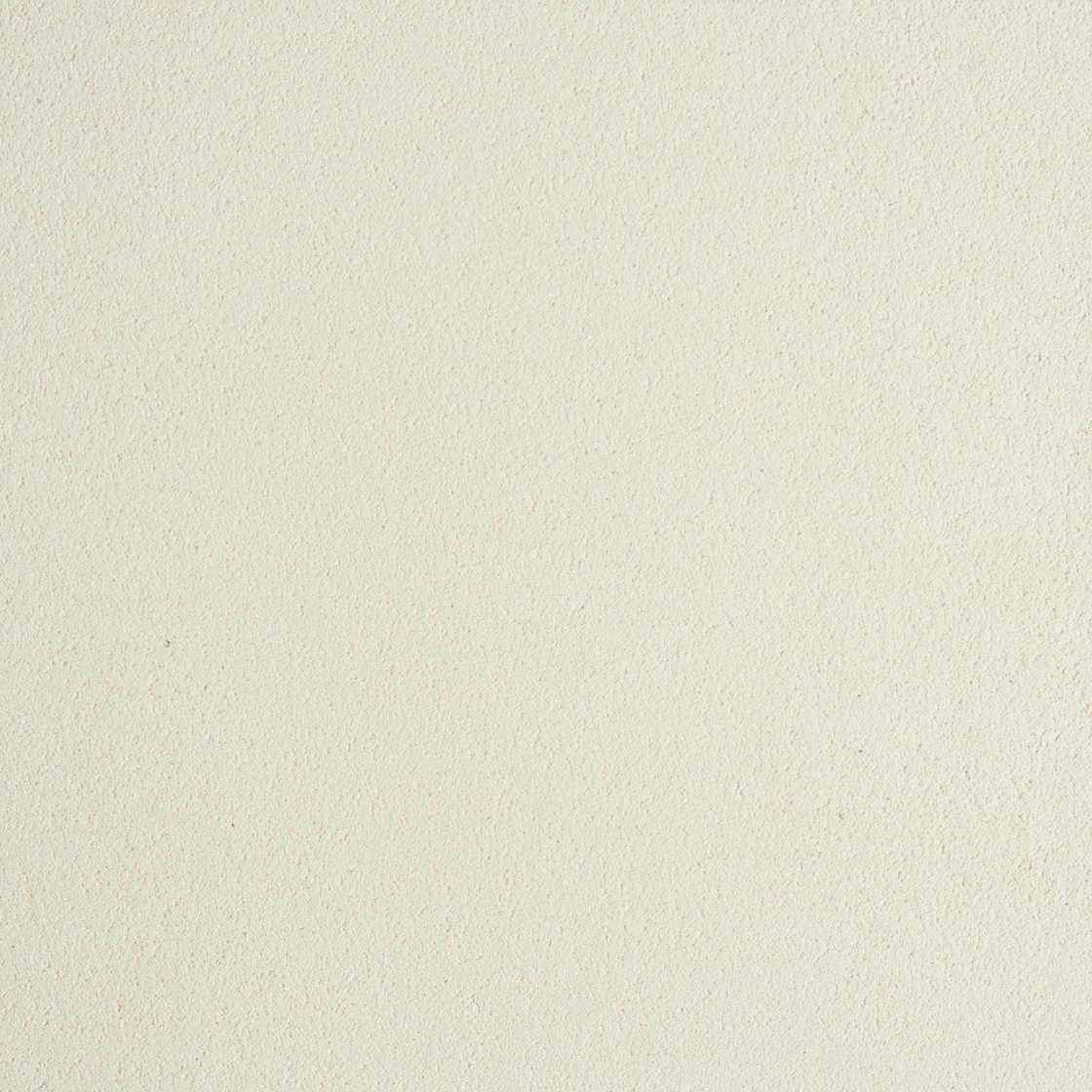

004
Pale Cream
Colors and patterns illustrated are for guidance only.
Due to image rendering limitations, the exact pattern, colors and shades may vary from those shown.
For an accurate representation please order a sample.

Improving wellness in interior spaces by creating calm and inviting environments

Excellent Environmental Performance

Armourcoat Acoustic panels are made in the UK to exacting quality standards and are ready for immediate installation. The mineral wool panels incorporate a minimum of 70% recycled content, with the basecoat made from expanded glass with 75% recycled content, and the topcoat plaster made from 72% recycled marble. The system contains minimal VOCs and is resistant to bacteria, mould and mildew.

Product Resources

Technical-Document-Acoustic-Plaster
2.47MB
pdf
CSI-Document-Acoustic-Plaster-AP335-28mm-Type-A-Mount
2.28MB
docx
CSI-Document-Acoustic-Plaster-AP335-48mm-Type-A-Mount
2.28MB
docx
EPD-Armourcoat-Acoustic-Plaster
1,004KB
pdf
HPD-Armourcoat-Acoustic-Plaster-Panels
93KB
pdf
HPD-Armourcoat-Acoustic-Plaster-Topcoat
100KB
pdf
HPD-Armourcoat-Acoustic-Plaster-Bondplast
98KB
pdf
LEED-Statement-Acoustic-Plaster
566KB
pdf
