Acoustic Plaster

Grain

Lightly textured, natural mineral acoustic surface

Natural, delicately textured surface with powerful sound absorption

Acoustic Plaster Grain offers a lightly textured, seamless mineral surface designed to let sound pass through and attenuate within the mineral wool layer beneath. The result is a naturally granular finish that effectively absorbs unwanted reverberations, enhancing the acoustic comfort of interior spaces.

Available in an extensive palette of colours, Acoustic Plaster Grain can be specified as a Class A or Class C system and applied seamlessly to flat or curved surfaces of up to 200m², delivering a subtle, high-performance finish.

Order Sample

Features & Benefits

  • Seamless, hand applied finish
  • Excellent acoustic performance
  • Class A or Class C system
  • A2 fire rated
  • Zero VOC
  • Breathable
  • Minimum 72% recycled content
  • Natural mineral material
  • Mould and mildew resistant
  • Seamless application of areas up to 200m2
  • Colour matching and bespoke service available

Certifications

  • Acoustic performance:
    • 28mm system:
      • EN ISO 354:2003: αw = 0.75, Class C
      • SAA = 0.86, NRC = 0.85 (from EN ISO 354 results)
    • 48mm system:
      • EN ISO 354:2003: αw = 1.00, Class A
      • SAA = 1.06, NRC = 1.00 (from EN ISO 354 results)
  • Fire rating (in all colours):
    • EN 13501-1:2007: A2 – s1, d0
    • ASTM E84-20: Class A
  • VOC content and Emissions:
    • Indoor Air Comfort: Pass
    • BREEAM International v2.0 (2016):  Exemplary Level
  • Embodied carbon EN15804 +A2 (A1-A3):
    • 28mm system: 4.17 kg CO2e/m2
    • 48mm system: 6.46 kg CO2e/m2
  • Environmental Product Declaration
  • Health Product Declaration

Areas of Use

  • Interior
  • Flat ceilings
  • Curved ceilings
  • Vaulted ceilings
  • High level walls

Available in 2 PERFORMANCE LEVELS

Class A System – 48mm Thickness

A Weighted Sound Absorption Coefficient of 1.00 was achieved when the 48mm Acoustic Plaster System – Grain was independently tested to European Standard EN ISO 354.

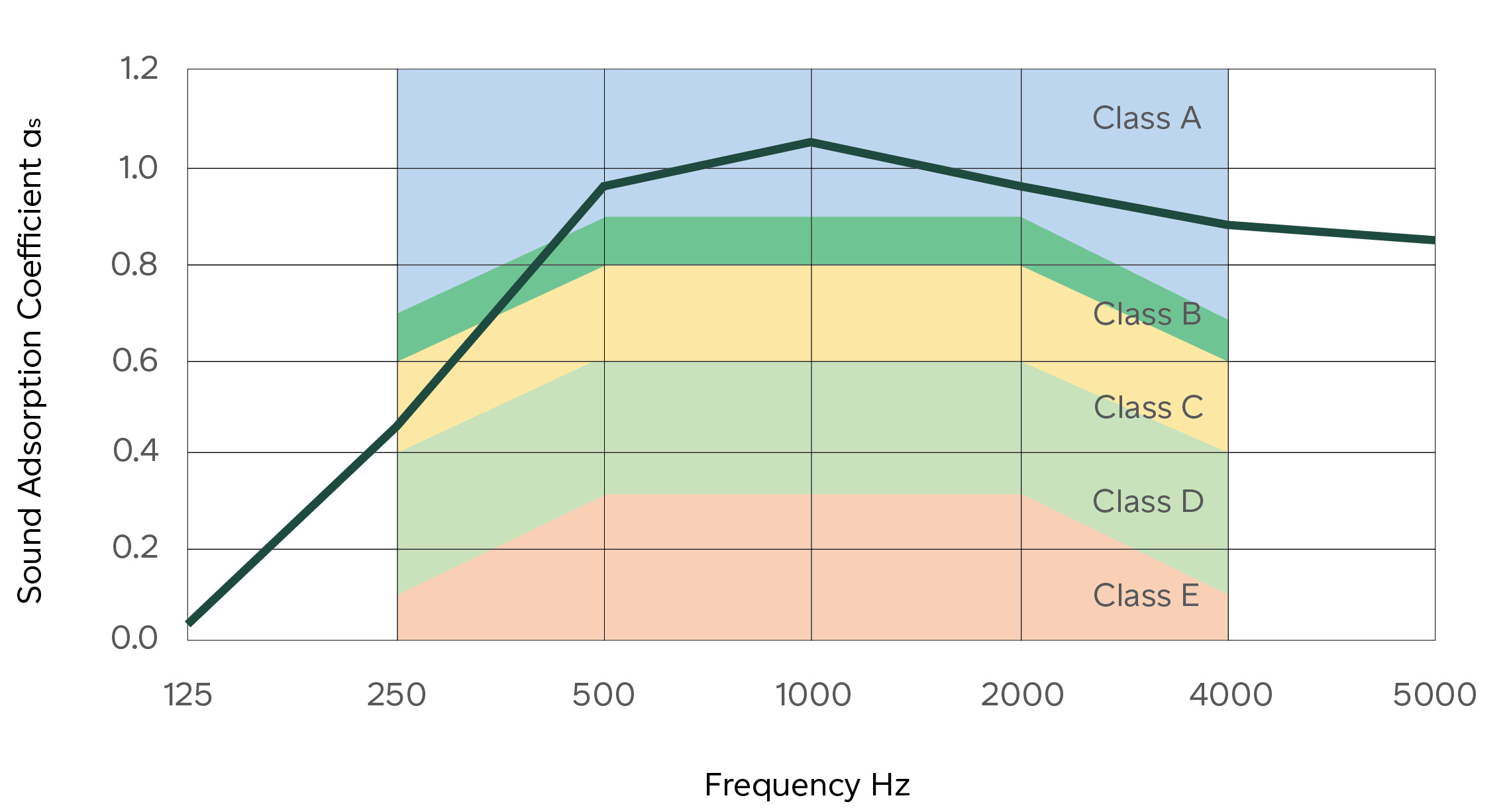

Class C System – 28mm Thickness

A Weighted Sound Absorption Coefficient of 0.75 was achieved when the 28mm Acoustic Plaster System – Grain was independently tested to European Standard EN ISO 354.

ACOUSTIC PLASTER Grain Colour Range and Samples

001
White

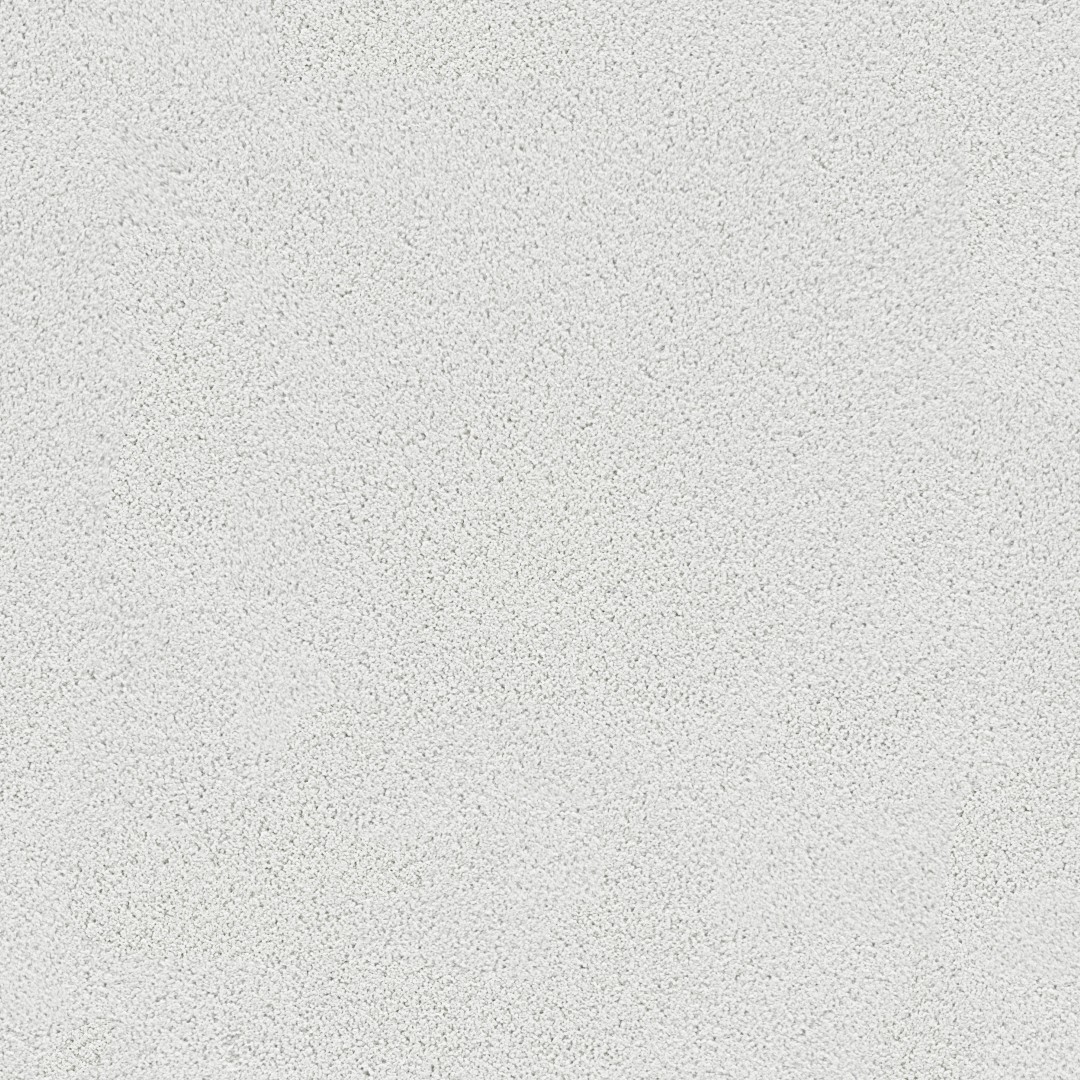

002
Pale Grey

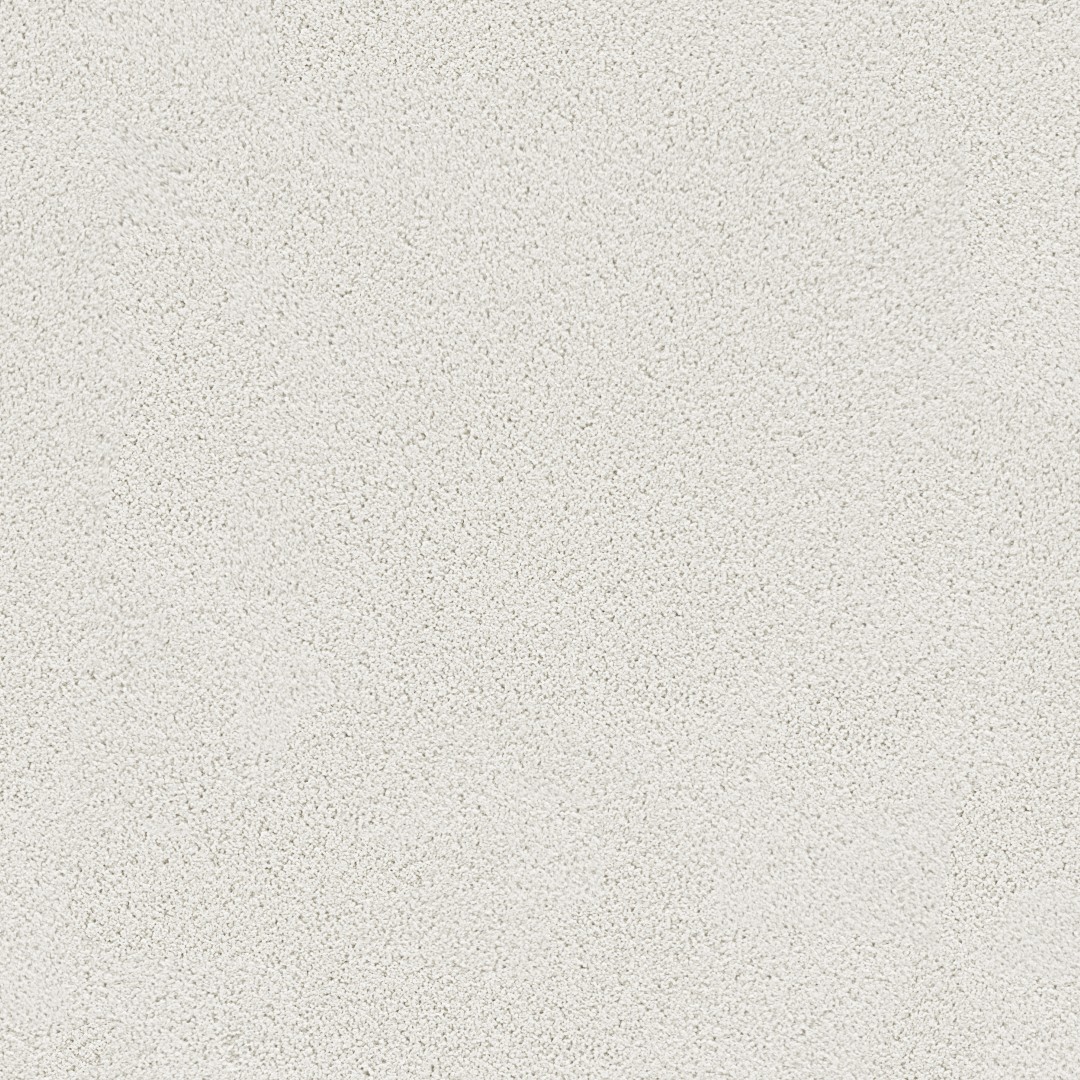

003
Pale Taupe

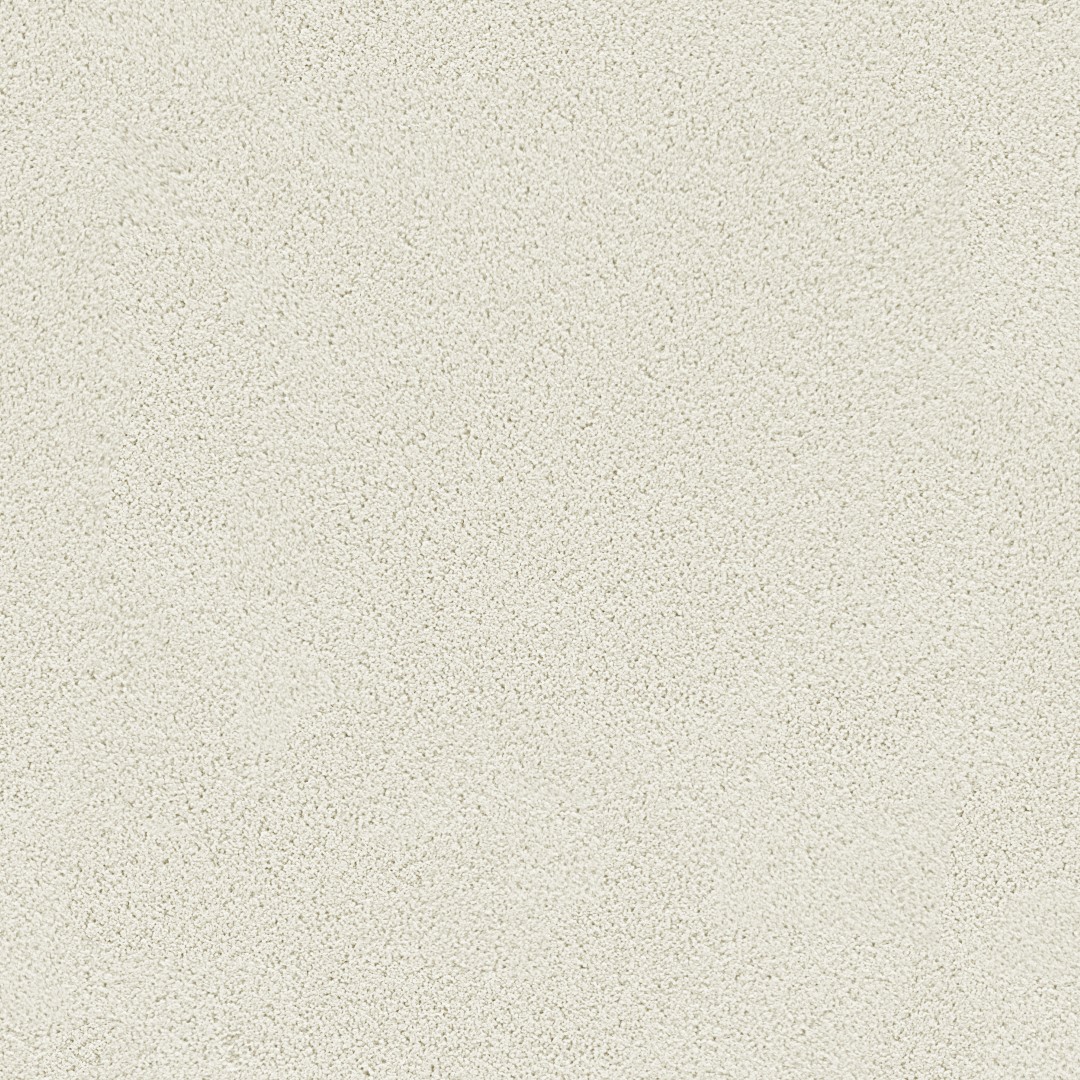

004
Pale Cream
Colours and patterns illustrated are for guidance only.
Due to image rendering limitations, the exact pattern, colours and shades may vary from those shown.
For an accurate representation please order a sample.

Need more colour?

Acoustic Plaster can be produced in a wide range of tones. Please contact our sales team for more information and to order samples.

Get in Touch

Product Resources

Technical-Document-Acoustic-Plaster-Grain
2.67MB
pdf
Specification-Acoustic-Plaster-Grain
990KB
pdf
EPD-Armourcoat-Acoustic-Plaster
1,004KB
pdf
HPD-Armourcoat-Acoustic-Plaster-Panels
83KB
pdf
HPD-Armourcoat-Acoustic-Plaster-Topcoat-AP347
88KB
pdf
HPD-Armourcoat-Acoustic-Plaster-Bondplast
89KB
pdf
LEED-Statement-Acoustic-Plaster-AP347
80KB
pdf
