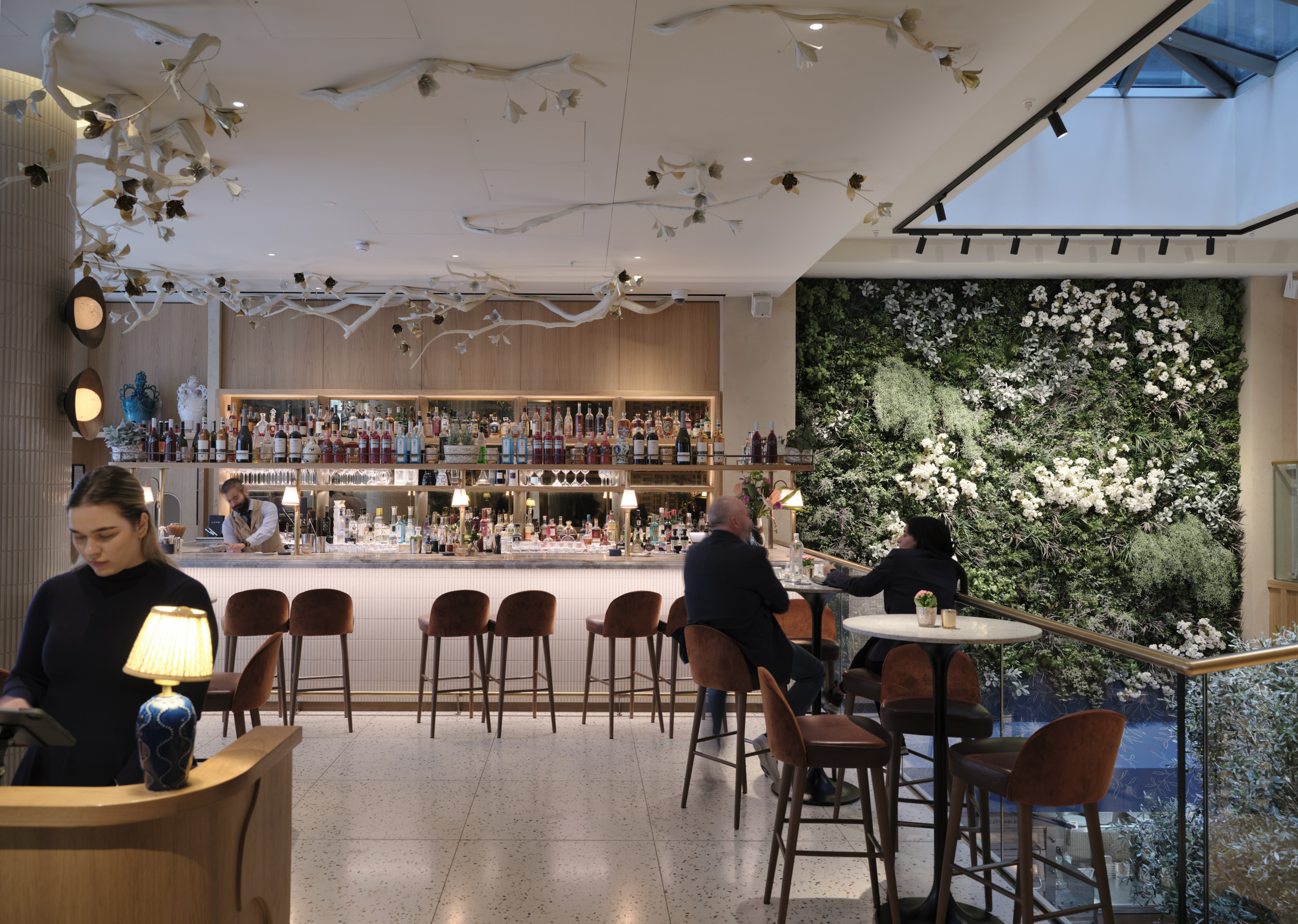

Armourcoat acoustic plaster system on bar ceiling at Vivi Centrepoint

Acoustic Plaster

Seamless acoustic plaster system with powerful sound absorption, helping create calm & inviting interior spaces.

Made from naturally sustainable mineral materials, Armourcoat Acoustic Plaster is designed to optimise the acoustics of interior environments by absorbing unwanted sound, helping to create calm and inviting spaces.

Outstanding Acoustic Performance
Natural Material
Sustainable Accreditations
Fire Rated
Supply, Install & Warranty
Bespoke Service

Available in 2 thicknesses

Illustration of Class A 48mm thickness of Armourcoat Acoustic plaster system

Class A – 48mm system

A Weighted Sound Absorption Coefficient of 0.95 was achieved when the 48mm Acoustic Plaster System was independently tested to European Standard EN ISO 354.

Illustration of Class B 28mm thickness of Armourcoat Acoustic plaster system

Class B – 28mm system

A Weighted Sound Absorption Coefficient of 0.80 was achieved when the 28mm Acoustic Plaster System was independently tested to European Standard EN ISO 354.

Creating calm and inviting spaces.

Acoustic Plaster allows sound energy to pass through the mineral-based surface and attenuate in the layers below, reducing reverberations that can otherwise impact the enjoyment of the space. Absorbing unwanted sound, Acoustic Plaster helps create calm, restful spaces that support the wellbeing of those using them.

Made in the UK from a minimum of 72% recycled material, Acoustic Plaster can be seamlessly installed over large expanses of flat, curved and vaulted ceilings as well as high level walls. The system is also suitable for well-ventilated areas exposed to moisture, such as swimming pools.

Feature & Benefits
  • Seamless, hand applied finish
  • Excellent acoustic performance
  • Class A or Class B system
  • A2 fire rated
  • Zero VOC
  • Breathable
  • 72-75% recycled content
  • Natural mineral material
  • Mould and mildew resistant
  • Colour matching and bespoke service available

Certifications
  • Acoustic performance:
    • 28mm system:
      • EN ISO 354:2003: αw = 0.80 Class B
      • ASTM C423-17: SAA = 0.82, NRC = 0.85
    • 48mm system:
      • EN ISO 354:2003: αw = 0.95 Class A
      • ASTM C423-17: SAA = 0.92, NRC = 0.9
  • Fire rating (in all colours):
    • EN 13501-1:2007: A2 – s1, d0
    • ASTM E84-20: Class A
  • VOC content and Emissions:
    • Indoor Air Comfort: Pass
    • BREEAM International v2.0 (2016):  Exemplary Level
  • Embodied carbon: EN15804 +A2: 0.48 – 0.56 kg CO2e.
  • Environmental Product Declaration
  • Health Product Declaration

Areas for Use
  • Interior
  • Flat ceilings
  • Curved ceilings
  • Vaulted ceilings
  • High level walls

ACOUSTIC PLASTER – DESIGN INSPIRATION

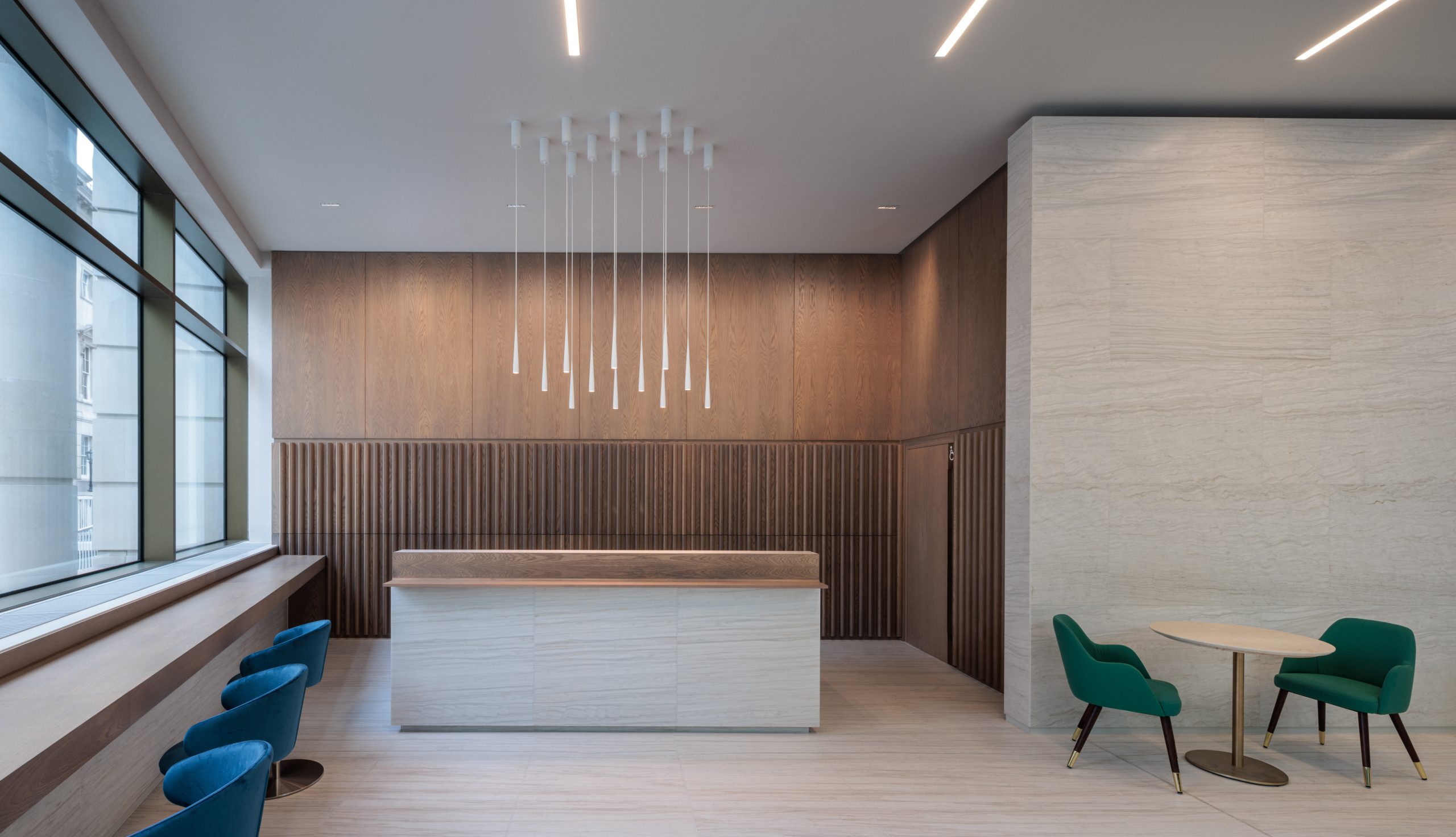

Armourcoat acoustic plaster system in commercial building
Armourcoat acoustic plaster system on ceiling at commercial Minster Building, London
Armourcoat acoustic plaster system in commercial building
Armourcoat acoustic plaster system on ceiling at commercial Minster Building, London
Armourcoat acoustic plaster system on reception and atrium at commercial Minster Building, London

Modern Craftsmanship

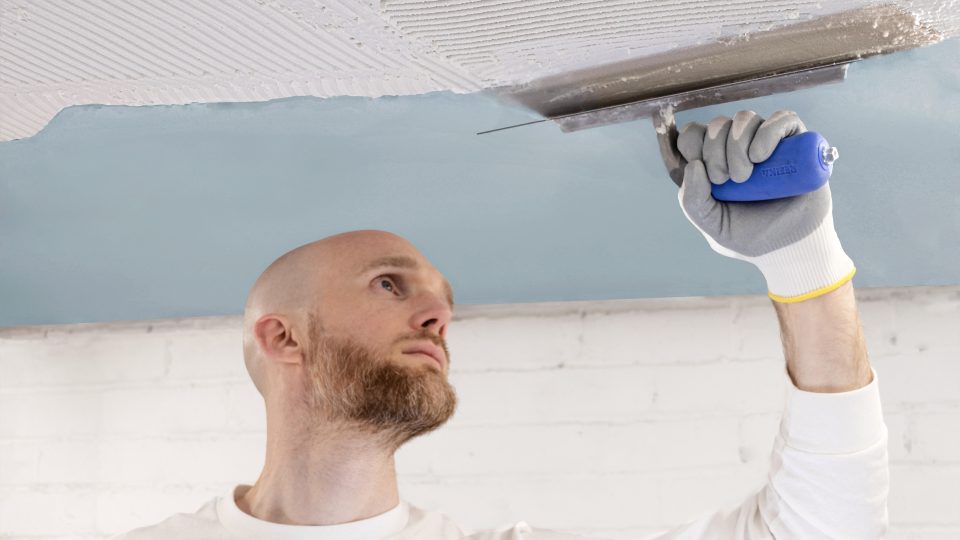

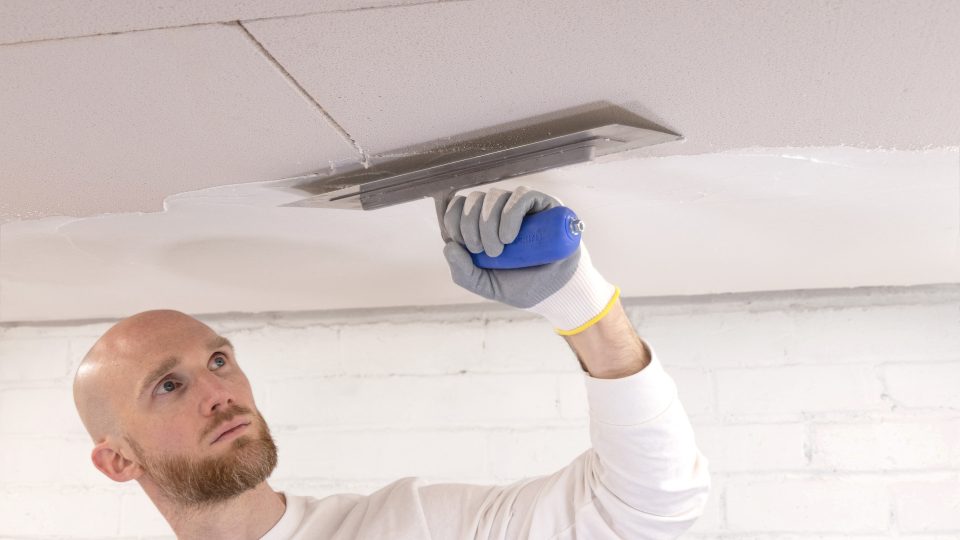

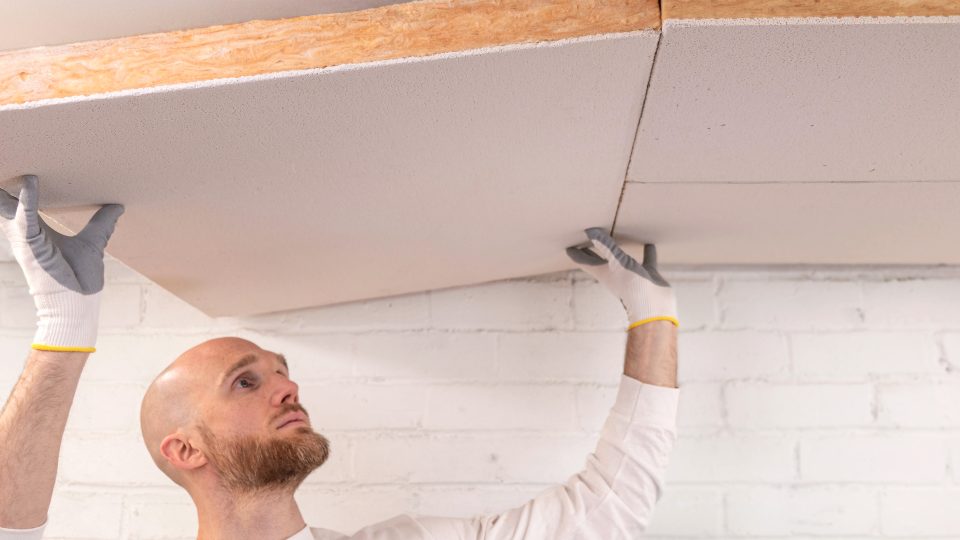

Armourcoat Acoustic Plaster consists of mineral wool panels with a factory applied acoustic plaster basecoat. These panels are installed on site by skilled applicators before the surface is hand finished with seamless undercoat and topcoat layers of natural mineral acoustic plaster. Flat, curved and vaulted areas of up to 200m² can be achieved without any joints and multiple detailing options are available for lighting, services and features. A typical installation takes just 4 days.

Available as a smooth finish in 4 off-white tones as standard, endless bespoke colours, textures and effects are possible.

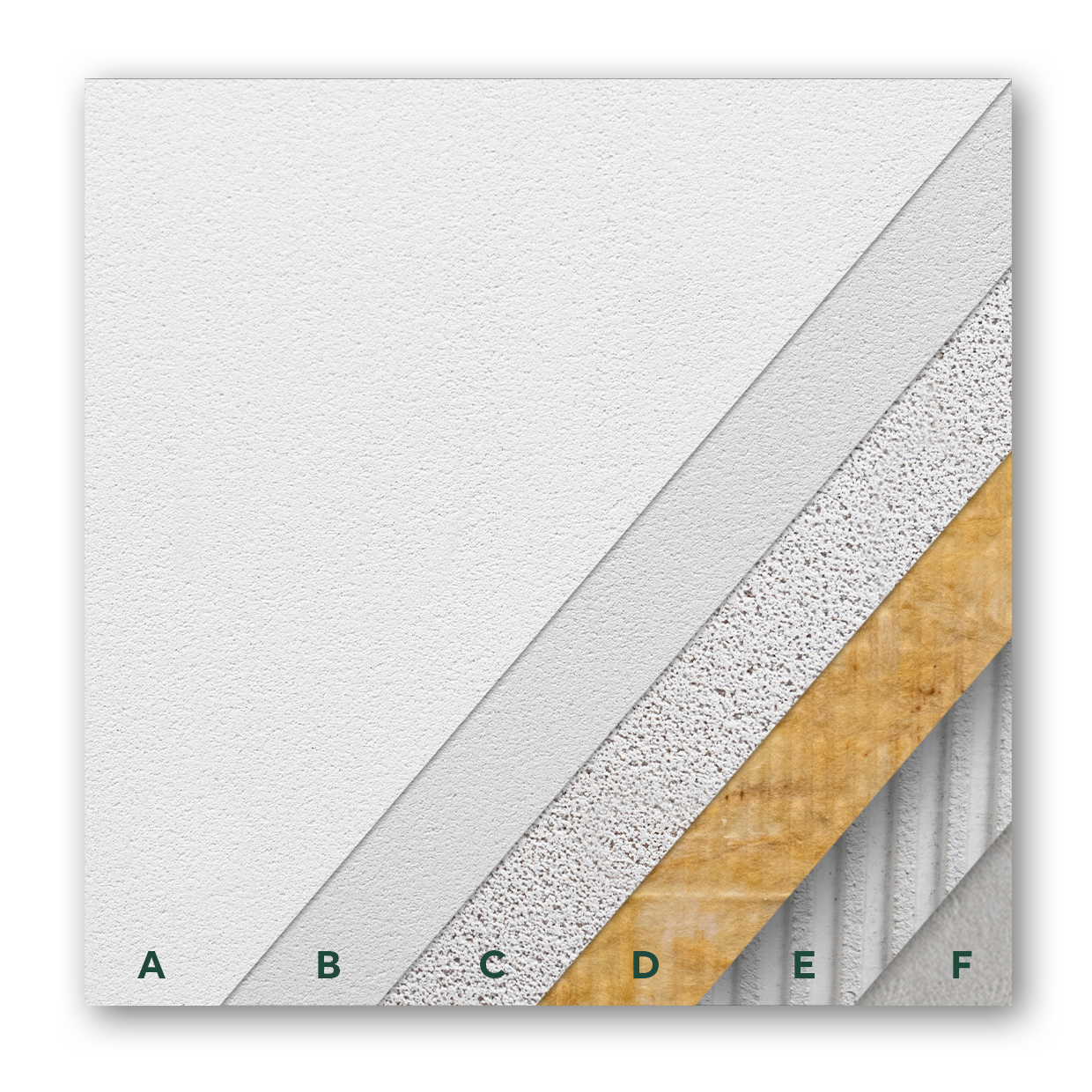

A: Seamless Acoustic Plaster Topcoat
B: Acoustic Plaster Undercoat
C: Acoustic Plaster Basecoat
D: Mineral Wool Panel
E: Bondplast Gypsum Adhesive
F: Substrate

Order Sample

001

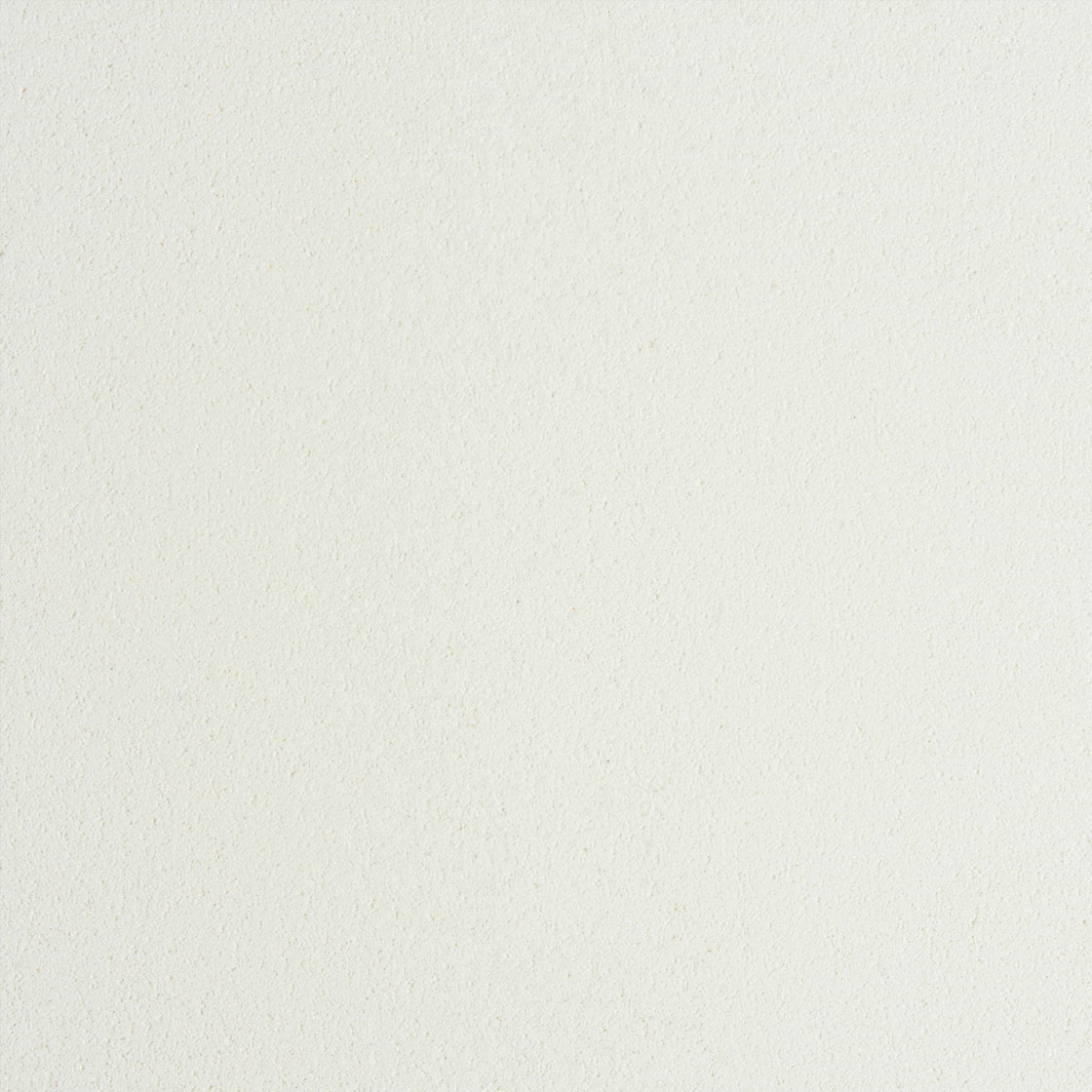

White
002

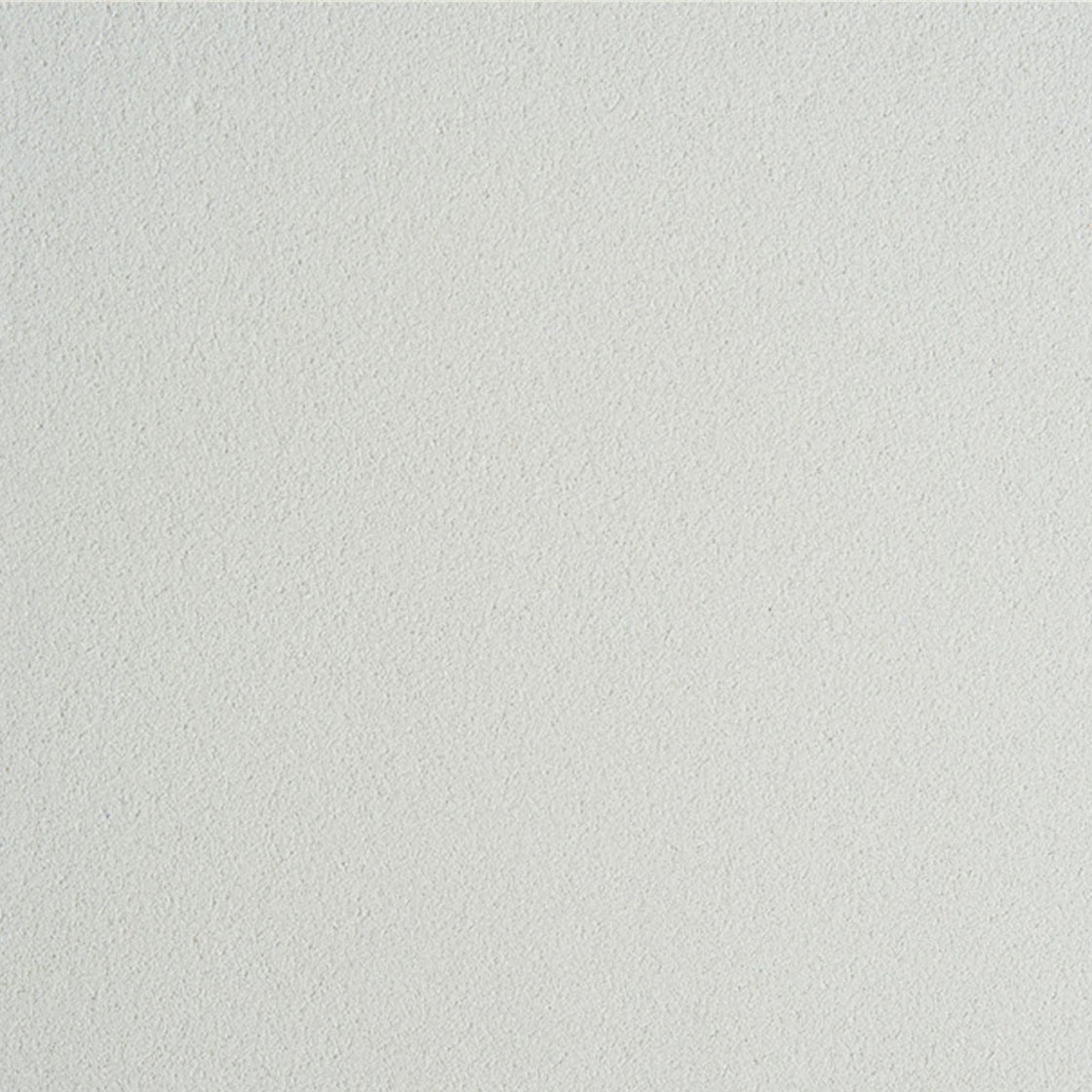

Pale Grey
003

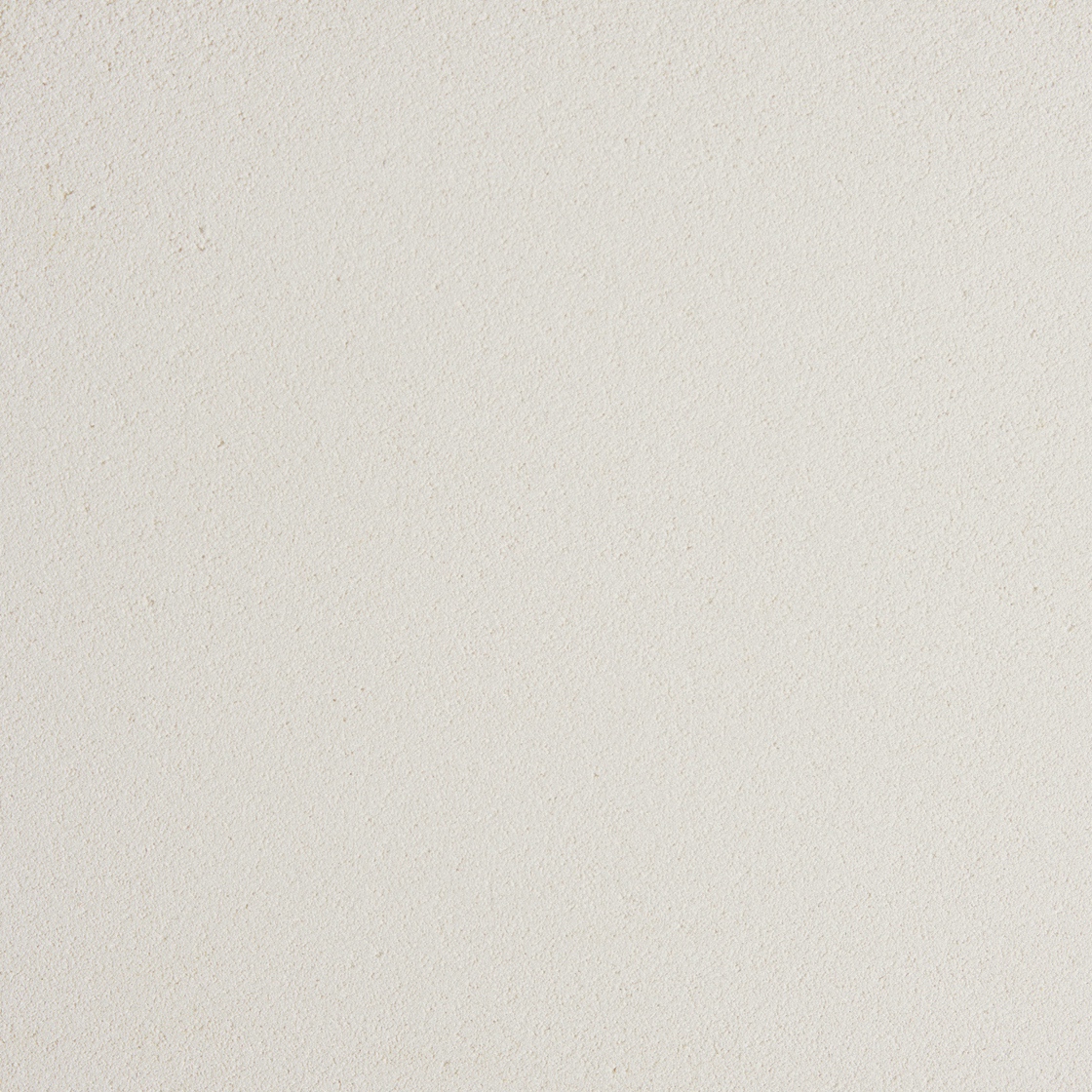

Pale Taupe
004

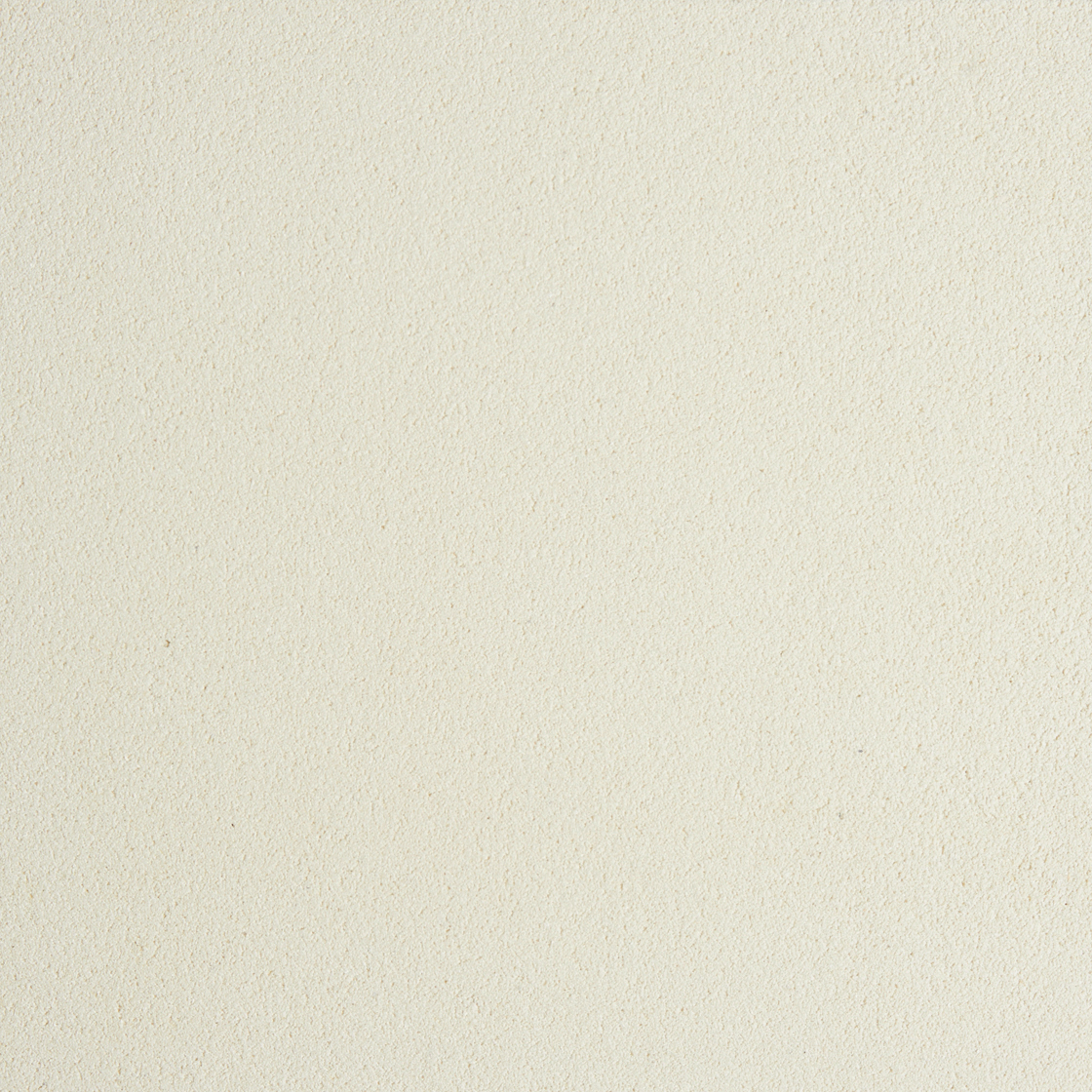

Pale Cream
Colours and patterns illustrated are for guidance only.
Due to image rendering limitations, the exact pattern, colours and shades may vary from those shown.
For an accurate representation please order a sample.

Crafted with the environment in mind

Made in the UK to exacting standards, the Armourcoat Acoustic Plaster system consists of pre-coated mineral wool panels with a marble-based topcoat. The mineral wool panels incorporate a minimum of 70% recycled content, the basecoat is made from 75% recycled expanded glass, and the topcoat plaster is made from 72% recycled marble. The system is breathable, contains zero VOCs and is resistant to bacteria, mould and mildew.
